One-piece runway
Bent diamond-plate platform with no welds or patchwork joins.
// Premium 4-post car lifts · 2,700 kg capacity · 5-year warranty
Two cars.
One space.
Double your garage. Not your footprint.
Check my garage
Engineered for performance
Australia-wide delivery
Approved installer network
5-year warranty
Designed to maximise every space
// The Pitbox Stack
Stack
4 post parking lift
Park two cars in the space of one with the Pitbox Stack. A premium four-post lift designed specifically for residential garages.
$8,999
$8,999 AUD including GST and standard metro delivery. Installation quoted separately.
- Up to 2,700 kg capacity
- Lift height 2,100 mm
- 4,200 mm ceiling guidance
- Mechanical safety locks
- Standard metro delivery
- 5-year structural warranty
// Why PITBOX?
Designed for the garage you live with.
Documented safety
Mechanical locks across all four posts, emergency stop and isolated 24V controls.
Residential finish
Laser-cut, powder-coated steel with custom colours available on request.
Site review
PITBOX reviews your garage, vehicle dimensions and site conditions before an order proceeds.
Installer coordination
PITBOX coordinates or refers approved independent installers; installation is quoted separately.
Local support
Australian guidance from compatibility review through delivery, backed by a five-year structural warranty.
// The grid
Two cars.
Every style.

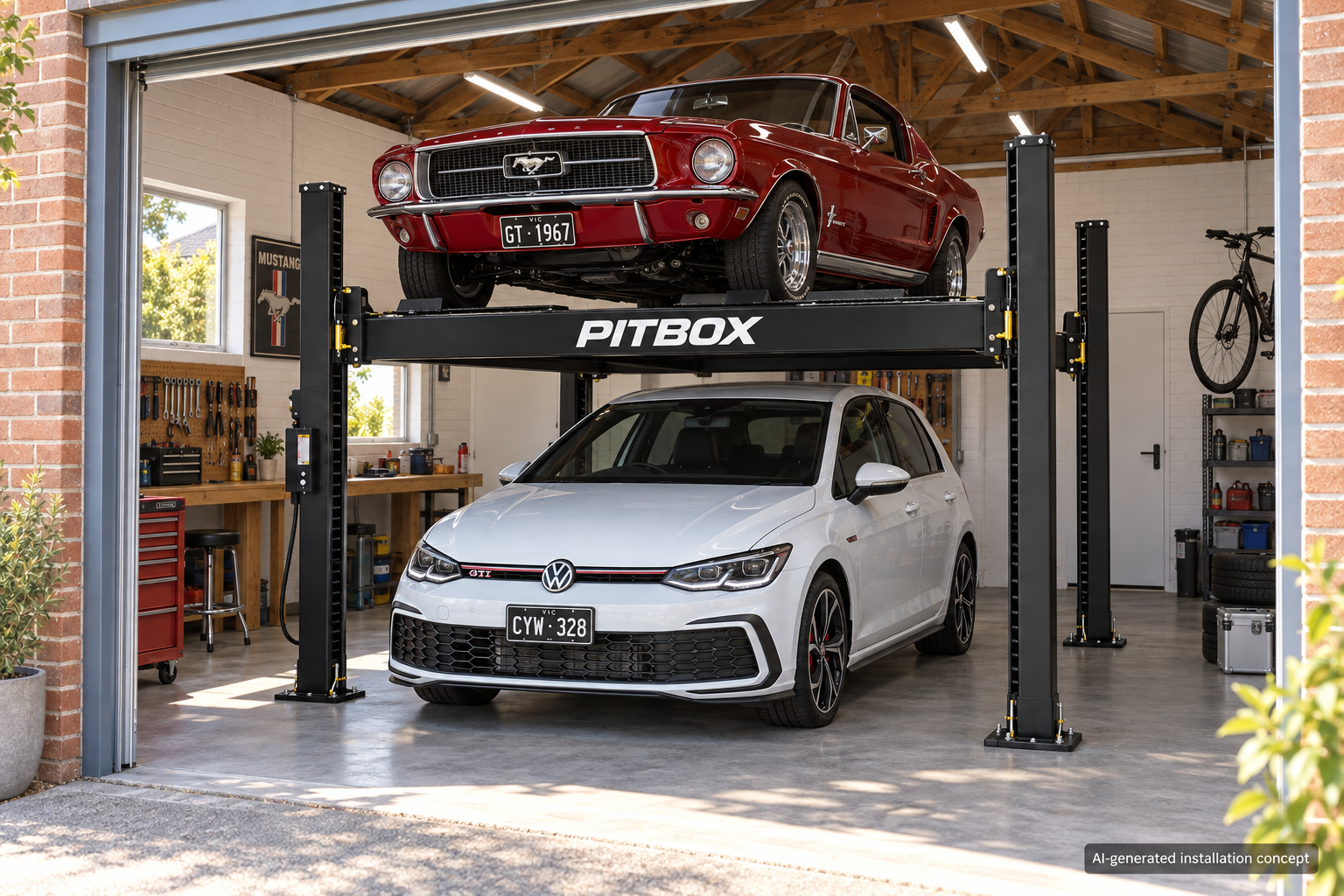

1967 Mustang over a Golf GTI
Illustrative concept · Not a customer installation

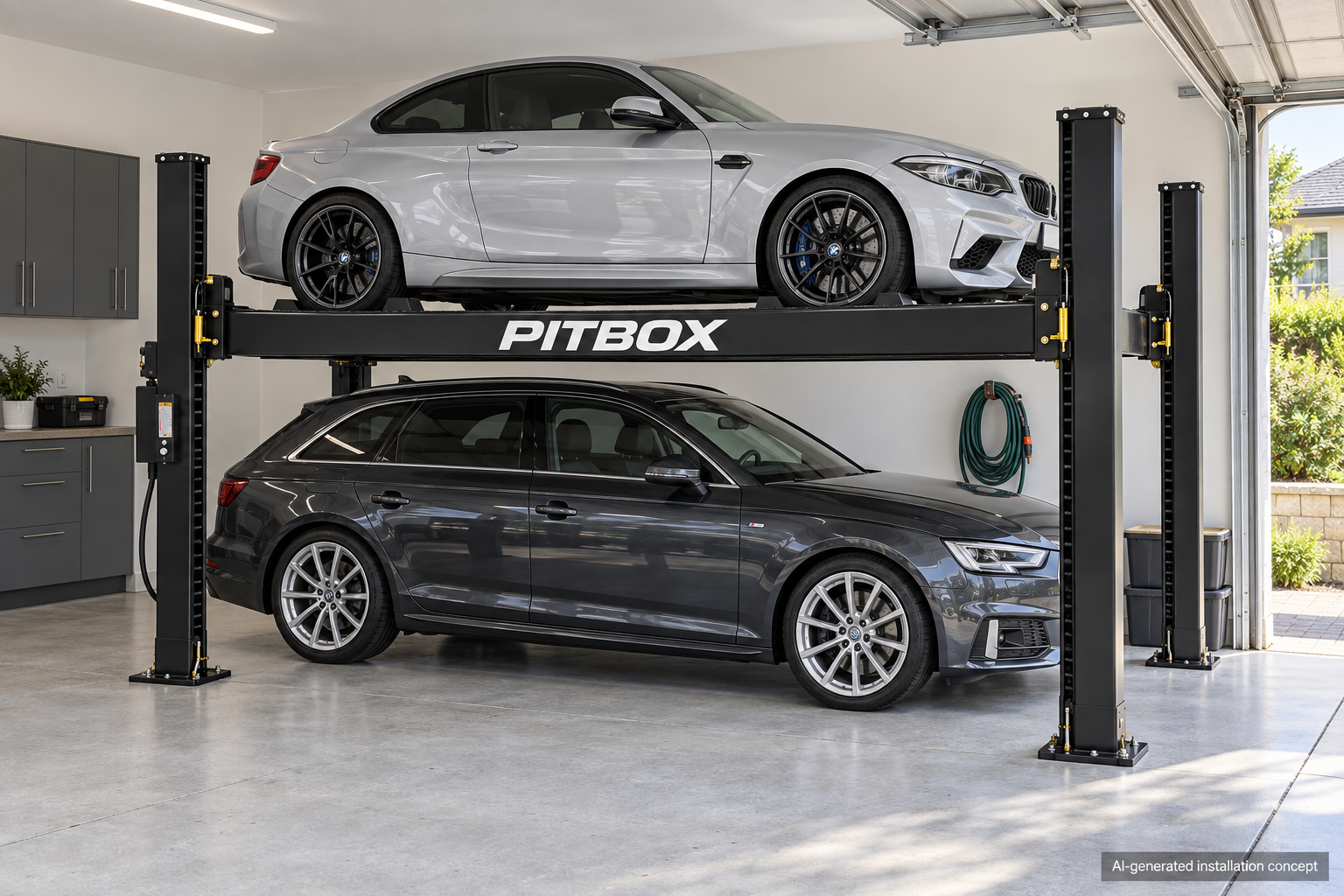

BMW M2 over an Audi A4
Illustrative concept · Not a customer installation

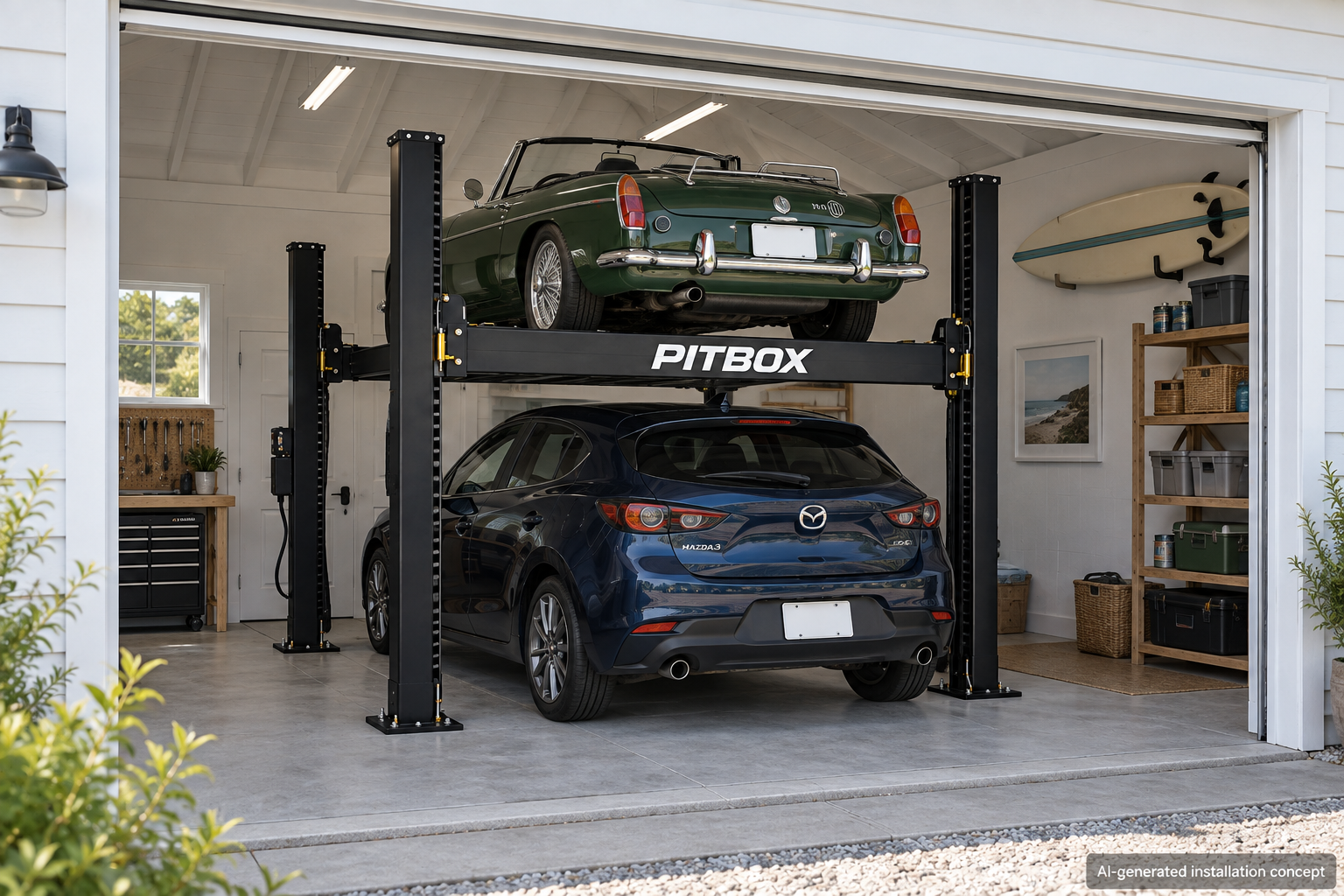

MGB over a Mazda 3
Illustrative concept · Not a customer installation

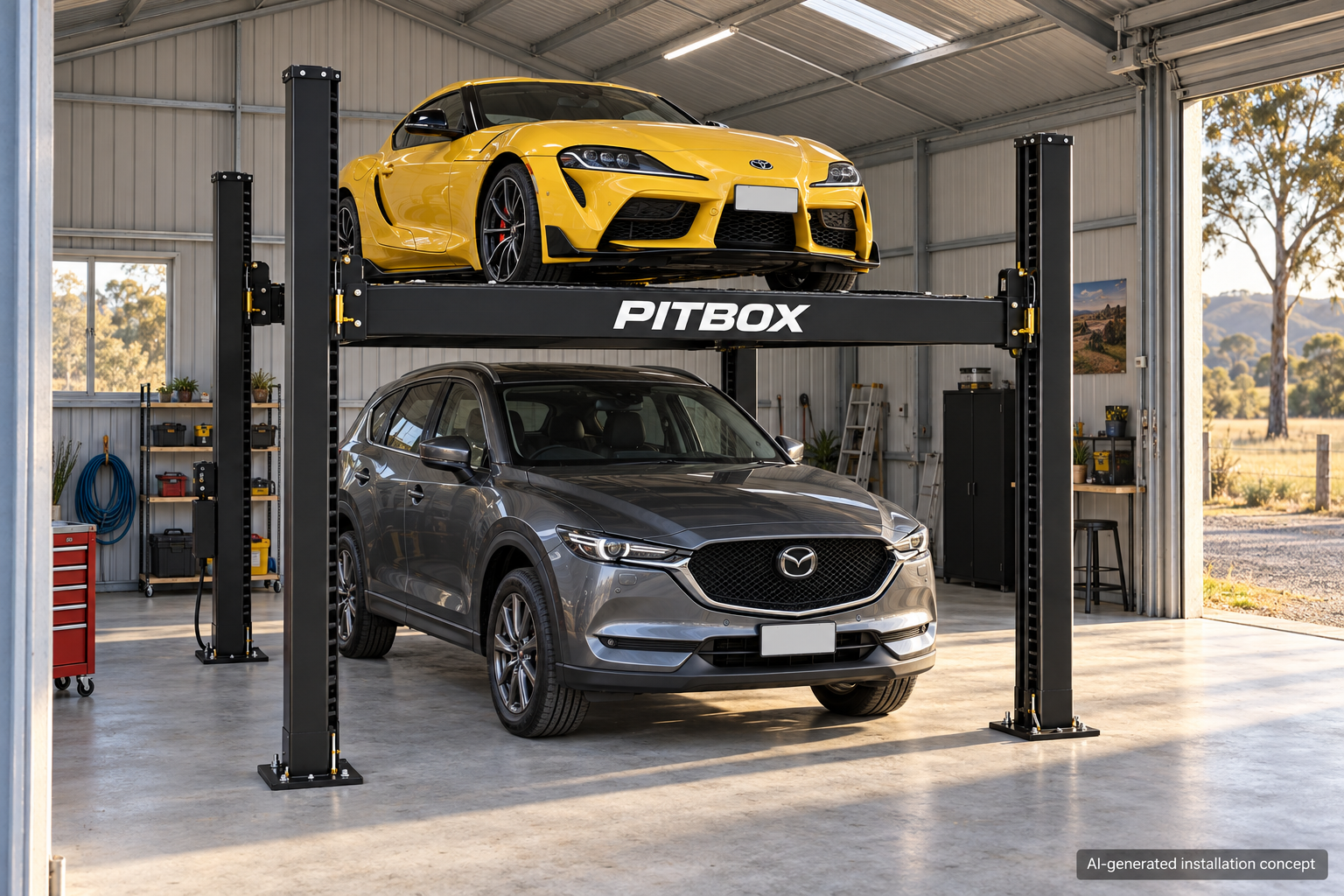

Supra over a CX-5
Illustrative concept · Not a customer installation
// Race plan
How it works
Check your garage
Send ceiling height, vehicle details and photos.
Order your PITBOX
Confirm suitability and arrange delivery.
Approved installation
PITBOX coordinates or refers an approved independent installer, who quotes and performs installation separately.
Double garage capacity
Turn one parking bay into space for two vehicles.
Built for daily use
Straightforward operation for cars you drive, not just display.
Premium finish
A clean architectural form designed for residential garages.
Mechanical safety locks
Positive locking positions provide confidence while parked.
Australian support
Local guidance from suitability review through delivery.
Independent installation
Approved independent specialists quote and perform installation.
// Full specifications
Built to spec.
Every figure is the delivered product — not a range. Custom frame colours and a 2,400 mm wide-body are available on request.
Request the dimension drawingPerformance
- Lifting capacity
- 2,700 kg (per lift)
- Lift height
- 2,100 mm
- Rise / lower time
- ~50 sec / ~45 sec
Dimensions
- Recommended minimum ceiling height
- 4,200 mm
- Post height
- 2,603 mm
- Overall equipment width
- 2,128 mm
- Drive-through width
- 1,988 mm (2,400 mm wide-body available on request for larger SUVs)
Construction
- Free-standing, four-post design — floor-mounted, no slab anchoring or excavation required
- One-piece bent diamond-plate platform runway — no welds or patchwork joins
- Laser-cut, powder-coated steel frame (custom colours available on request)
- High-polymer polyethylene slider bushings — wear-resistant, low-maintenance
Safety & operation
- Mechanical lock device, engaging at multiple heights across all four posts
- Manual safety-lock release
- Emergency stop and key-switch control panel
- Limit switch for precise height control
- 24V safety control circuit, isolated from mains power
- Over-current protection and time-delay relay
- Optional removable drive-on ramps
Power
- Supply
- 220–240V, 50Hz single-phase
- Motor
- 2.2kW motor — cylinder and steel wire rope lift mechanism
- Protection
- Rain-proof control box and motor cover
Weight & packaging
- Unit weight
- ~1,050 kg
- Shipping crate
- 4,750 × 710 × 600 mm
Suitability depends on vehicle dimensions, concrete slab, ceiling height and site conditions. Final specifications are confirmed before order.
// Compatibility review
Check my garage.
Tell us about your garage and vehicles. Our team reviews the full site details and confirms suitability before an order proceeds. No payment is taken at this stage.
Takes 60 seconds
// Pit wall FAQ
Before you park up.
How much ceiling height do I need?
We recommend a minimum ceiling height of 4,200 mm. The exact requirement depends on both vehicles, desired clearance and the lift position.
Can I park an SUV underneath?
Often, yes. We check the combined vehicle heights and required clearances before confirming suitability.
How is the lift kept safe?
The four-post design uses mechanical safety locks at multiple heights. Full operating and safety guidance is supplied with the lift.
Who installs my PITBOX?
PITBOX supplies the lift and can coordinate or refer an approved independent installer. Installation is quoted and contracted separately by the installer.
What does installation cost?
Installation is quoted and contracted directly by an approved independent installer, so it sits outside the $8,999 lift price. You receive that quote before you commit, and we can give an indicative range up front.
Does my concrete slab need to be checked?
Yes. Slab condition, thickness and strength form part of the site suitability review before installation is confirmed.
Do you deliver Australia-wide?
Yes. Standard delivery is included in eligible metro areas; regional and complex-access delivery is quoted separately.
What does the warranty cover?
The lift includes a five-year structural warranty. Final warranty terms and maintenance requirements are supplied with your order.
Can the lift be moved later?
In many cases, yes. An approved independent installer can assess, dismantle and reinstall the lift at a suitable new location.
